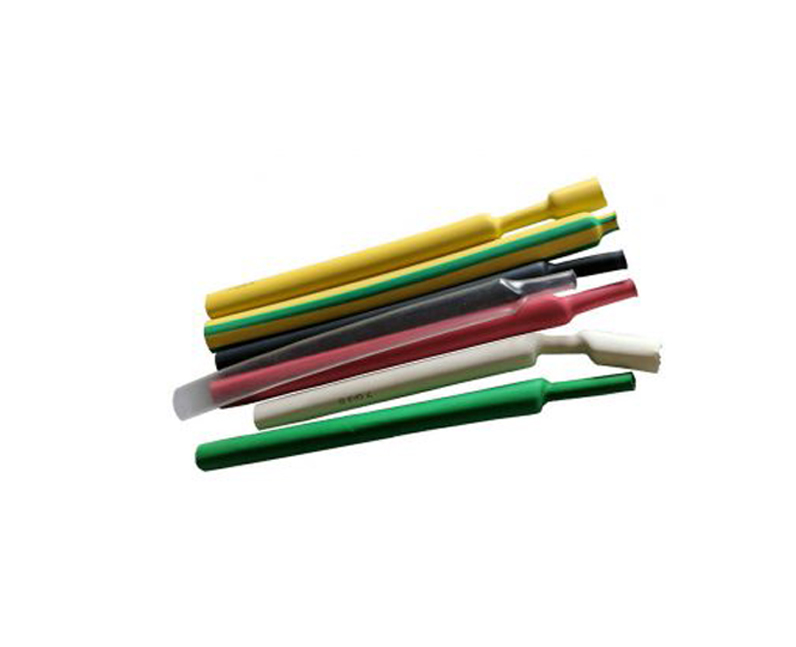

Heatshrink Tubing Normal Wall 2:1

Heatshrink Tubing Normal Wall 2:1

Product Type: Heatshrink Tubing

Applications: Our SHW-1-H series of heat shrink tubing is manufactured with modified radiation cross-linked polyolefin. The specially designed halogen free formulation makes the tubing very flexible and shrinks at lower temperature.  It is suitable for applications where temperature sensitive components protection e.g. PVC jacketed wire and cable where quick shrinkage is required.  It has good mechanical and electrical performances.

Dual colour green and yellow stripped polyolefin tubing is primarily used to identify ground wires. It is flexible and flame-retardant with permanent colour properties, making it easy to install and identify. Used for light duty harnessing and ground wire identification.

Specification:

  • Halogen Free
  • Operating temperature: -55℃ to +125℃
  • Minimum shrink temperature: 70℃
  • Full recovery temperature: 125℃
  • Shrink Ratio 2:1
  • RoHS Compliant
  • Meets Sony-SS-00259
  • Standard Colours: Black, red, blue, yellow, green, white (Other colors are also available on request)
